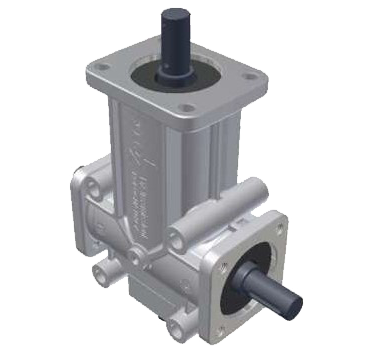

    DZ Gear Boxes

    FEATURES

    DZ right-angle drivers are designed for industrial applications where rotary power must be transferred between two shafts at right-angles to each other.

    HOUSING

    Single-piece aluminum alloy casting with 4 or 6 mounting points and 3 or 4 centering conditions.

    SHAFTS

    Manufactured in steel with 80 Kg/mm2 surface treatment for corrosion protection. Shaft coupling on the power take-off is by ISO standard keyways (except for Size 1). Keyways can be made at any angle.

    LUBRICATION

    Units are supplied already filled with lubricant. Size 1 units are filled with long-life grease; all other sizes are oil filled.

    GEARS

    SPIRAL bevel gears cut on GLEASON hobbing machines to ensure maximum load capacity.Nickel-chrome steel gears with surface case-hardened gear teeth; this ensures maximum service life while leaving the tooth core tough and flexible to resist mechanical shocks.Units are manufactured with backlash tolerances to ensure perfect gear engagement and silent operation. Backlash tolerances can be reduced to a minimum of 5’ if specifically requested; ask for details of special prices and delivery conditions on these orders.

    OIL SEALS

    Oil seal rings are fitted to all models. Special seal rings for high and low temperatures are available upon request.

    BEARING

    Large bearings in deep races
