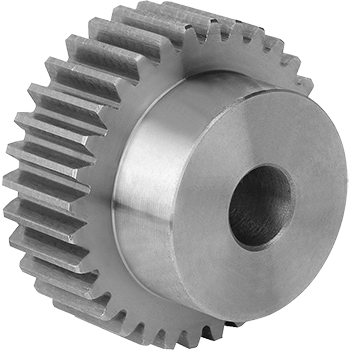

Module 6
**PLASTIC, PLATE STYLE & CUSTOM GEARS ALSO AVAILABLE**
MATERIAL: C45 Steel & Stainless Steel 1.4305 - C45 Steel Can be Heat Treated
20° Pressure Angle
SIZES IN MM
*If data table appears to be cutoff please scroll horizontally
| Part # | No. Of Teeth | Bore-BH8 | Hub Dia. - d | Outside Dia. - dk | Pitch Dia. - do |
|---|---|---|---|---|---|
| M6B12 | 12 | 20 | 54 | 84 | 72 |
| M6B14 | 14 | 20 | 65 | 96 | 84 |
| M6B15 | 15 | 20 | 70 | 102 | 90 |
| M6B16 | 16 | 20 | 75 | 108 | 96 |
| M6B18 | 18 | 20 | 80 | 120 | 108 |
| M6B20 | 20 | 20 | 90 | 132 | 120 |
| M6B23 | 23 | 25 | 110 | 150 | 138 |
| M6B24 | 24 | 25 | 110 | 156 | 144 |
| M6B25 | 25 | 25 | 110 | 162 | 150 |
| M6B30 | 30 | 25 | 110 | 192 | 180 |
| M6B40 | 40 | 25 | 120 | 252 | 240 |
