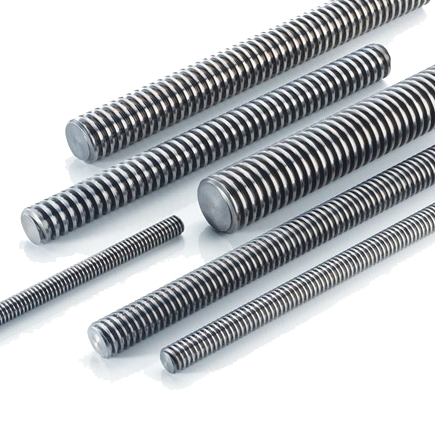

Trapezoidal Rods
MATERIAL: C45 Steel, Stainless Steel 304 & 316 Other Materials Availiable Upon Request
HARDENDED AND UNHARDENED
LENGTHS AVAILABLE: 1000mm - 3000mm
RIGHT HAND & LEFT HAND
MULTIPLE THREADS STARTS IF NEEDED
ADDITIONAL DATA INFORMATION CAN BE SENT IF NEEDED
SIZES IN MM
WE CAN ALSO PROVIDE CUSTOM AND UNIQUE SIZES. INCLUDING, STANDARD EUROPEON SIZES. ACME RODS AVAILABLE UPON REQUEST
CLICK ON THE SPEC SHEET FOR MATCHING NUTS.
*If data table appears to be cutoff please scroll horizontally
| Part # | Major Diameter | Minor Diameter | Pitch |
|---|---|---|---|
| TRA 10 X 2 | 10 | 7.04 | 2 |
| TRA 12 X 3 | 12 | 7.95 | 3 |
| TRA 14 X 3 | 14 | 9.93 | 3 |
| TRA 16 X 3 | 16 | 11.91 | 3 |
| TRA 16 X 4 | 16 | 10.85 | 4 |
| TRA 18 X 4 | 18 | 12.83 | 4 |
| TRA 20 X 4 | 20 | 14.83 | 4 |
| TRA 24 X 5 | 24 | 17.75 | 5 |
| TRA 28 X 5 | 28 | 21.74 | 5 |
| TRA 30 X 6 | 30 | 22.2 | 6 |
| TRA 32 X 6 | 32 | 24.18 | 6 |
| TRA 36 X 6 | 36 | 28.17 | 6 |
| TRA 40 X 7 | 40 | 31.09 | 7 |
| TRA 44 X 7 | 44 | 35.08 | 7 |
| TRA 48 X 8 | 48 | 38.02 | 8 |
| TRA 50 X 8 | 50 | 39.17 | 8 |
| TRA 52 X 8 | 52 | 42.01 | 8 |
