PRECISION - Steel 35SMnPb10. Bearing Parts 18NiCrMo5Pb. Spline shaft C45 cold drawn.
Max. Operating Angle per Joint 45°.
OPERATING SPEEDS AVAILABLE UPON REQUEST
ALSO AVAILABLE
- Optional Keyways
- Custom Bore Sizes
- Plastic Universal Joints
*If data table appears to be cutoff please scroll horizontally

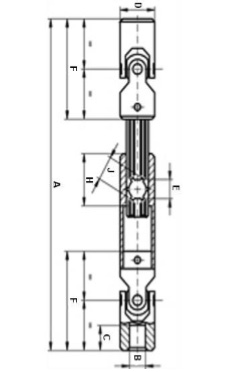

| Part # | B-H7 | D | C | F | A-Min | A-Max | H | E | J | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| UT10P | 10 | 22 | 10 | 45 | 170 | 230 | 40 | 11 | 14 | 0.37 |
| UT12P | 12 | 25 | 11 | 50 | 200 | 270 | 45 | 13 | 16 | 0.58 |
| UT14P | 14 | 29 | 13 | 56 | 210 | 280 | 45 | 13 | 16 | 0.85 |
| UT16P | 16 | 32 | 15 | 65 | 250 | 350 | 45 | 16 | 20 | 1.15 |
| UT18P | 18 | 37 | 17 | 72 | 270 | 370 | 45 | 16 | 20 | 1.56 |
| UT20P | 20 | 40 | 19 | 82 | 290 | 380 | 45 | 18 | 22 | 2.08 |
| UT22P | 22 | 47 | 22 | 95 | 330 | 430 | 48 | 21 | 25 | 3.33 |
| UT25P | 25 | 50 | 26 | 108 | 350 | 450 | 48 | 23 | 28 | 3.79 |
| UT30P | 30 | 58 | 30 | 122 | 400 | 510 | 50 | 26 | 32 | 5.59 |
