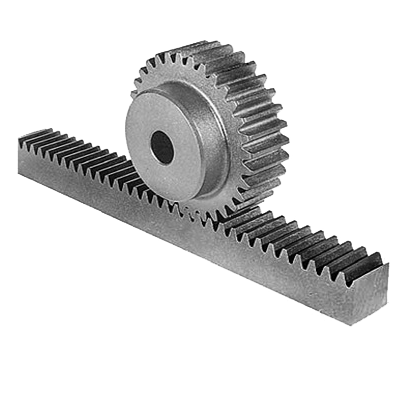

Gear Racks - Metric
MATERIAL: C45 Steel, and Stainless steel 1.4305
LENGTHS AVAILABLE: 1000mm - 3000mm Standard
20° Pressure Angle - Continuous Mount
SIZES IN MM
Also Available: Larger Sizes - Custom Sizes - Plastic Racks - Round Racks
*If data table appears to be cutoff please scroll horizontally
| Part # | B | C | Module | Length | H |
|---|---|---|---|---|---|
| M1 | 15 | 14 | 1 | 1000 - 3000MM | 15 |
| M1.5 | 17 | 15.5 | 1.5 | 1000 - 3000MM | 17 |
| M2 | 20 | 18 | 2 | 1000 - 3000MM | 20 |
| M2.5 | 25 | 22.5 | 2.5 | 1000 - 3000MM | 25 |
| M3 | 30 | 27 | 3 | 1000 - 3000MM | 30 |
| M4 | 40 | 36 | 4 | 1000 - 3000MM | 40 |
| M5 | 50 | 45 | 5 | 1000 - 3000MM | 50 |
| M6 | 60 | 54 | 6 | 1000 - 3000MM | 60 |
| M7 | 80 | 72 | 7 | 1000 - 3000MM | 80 |
